3 Plotting Satellite Images

In this tutorial we will learn to plot a satellite image (TIFF file) from TROPOMI. More information and method to download this satellite image can be read in our Air Quality Course - Filling Gaps with Satellite Images

import rasterio
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.colors as mcolors
from rasterio.plot import show
import geopandas as gpd

# Load TIFF
tif_path = "data/2026-03-07-00_00_2026-03-07-23_59_Sentinel-5P_NO2_NO2_(Raw).tiff"
with rasterio.open(tif_path) as src:
    no2 = src.read(1)                        # first band
    no2 = np.where(no2 == src.nodata, np.nan, no2)  # mask nodata
    extent = [src.bounds.left, src.bounds.right, src.bounds.bottom, src.bounds.top]
    crs = src.crs

# Load admin boundaries — reproject to match raster CRS
delhi_districts = gpd.read_file('data/DELHI_DISTRICTS.geojson').to_crs(crs)
delhi_districts.head()

	dtname	stname	stcode11	dtcode11	year_stat	Shape_Length	Shape_Area	OBJECTID	Dist_LGD	State_LGD	geometry
0	North	DELHI	07	091	2011_c	124517.060090	3.747820e+08	200	80	7	POLYGON ((77.08264 28.88361, 77.0824 28.88381,...
1	North East	DELHI	07	092	2011_c	45699.265032	4.487668e+07	204	81	7	POLYGON ((77.23185 28.77108, 77.22924 28.77104...
2	West	DELHI	07	096	2011_c	87103.576256	1.749203e+08	205	85	7	POLYGON ((76.97446 28.70169, 76.97444 28.70208...
3	East	DELHI	07	093	2011_c	34869.902874	5.714965e+07	207	78	7	POLYGON ((77.2927 28.65582, 77.28906 28.65989,...
4	South West	DELHI	07	097	2011_c	127028.154482	3.654339e+08	208	84	7	POLYGON ((76.94906 28.66977, 76.94875 28.6698,...

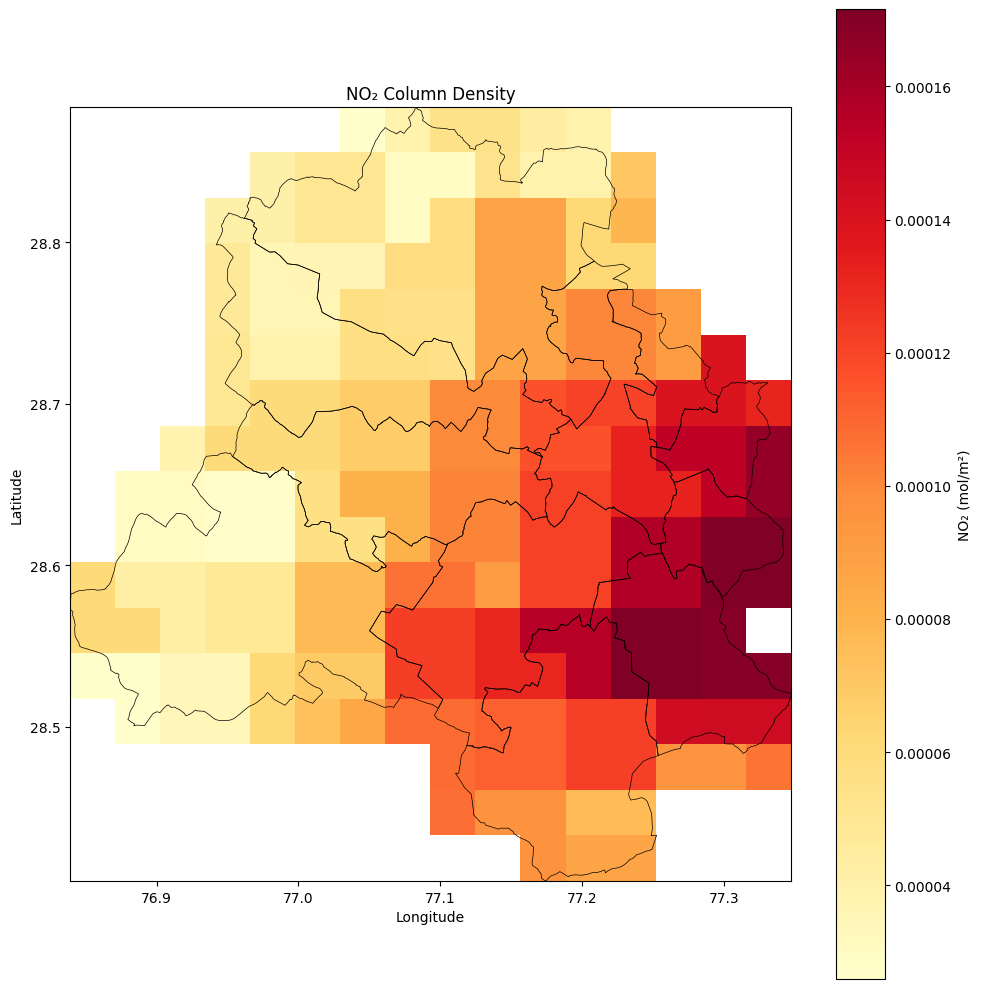

# Plot
fig, ax = plt.subplots(figsize=(10, 10))

im = ax.imshow(
    no2,
    extent=extent,
    cmap='YlOrRd',
    origin='upper',
    vmin=np.nanpercentile(no2, 2),   # clip outliers
    vmax=np.nanpercentile(no2, 98),
)

# Admin boundary overlay
delhi_districts.boundary.plot(ax=ax, linewidth=0.5, color='black')

plt.colorbar(im, ax=ax, label='NO₂ (mol/m²)')
ax.set_title('NO₂ Column Density')
ax.set_xlabel('Longitude')
ax.set_ylabel('Latitude')
plt.tight_layout()
#plt.savefig('no2_map.png', dpi=150, bbox_inches='tight')
plt.show()
